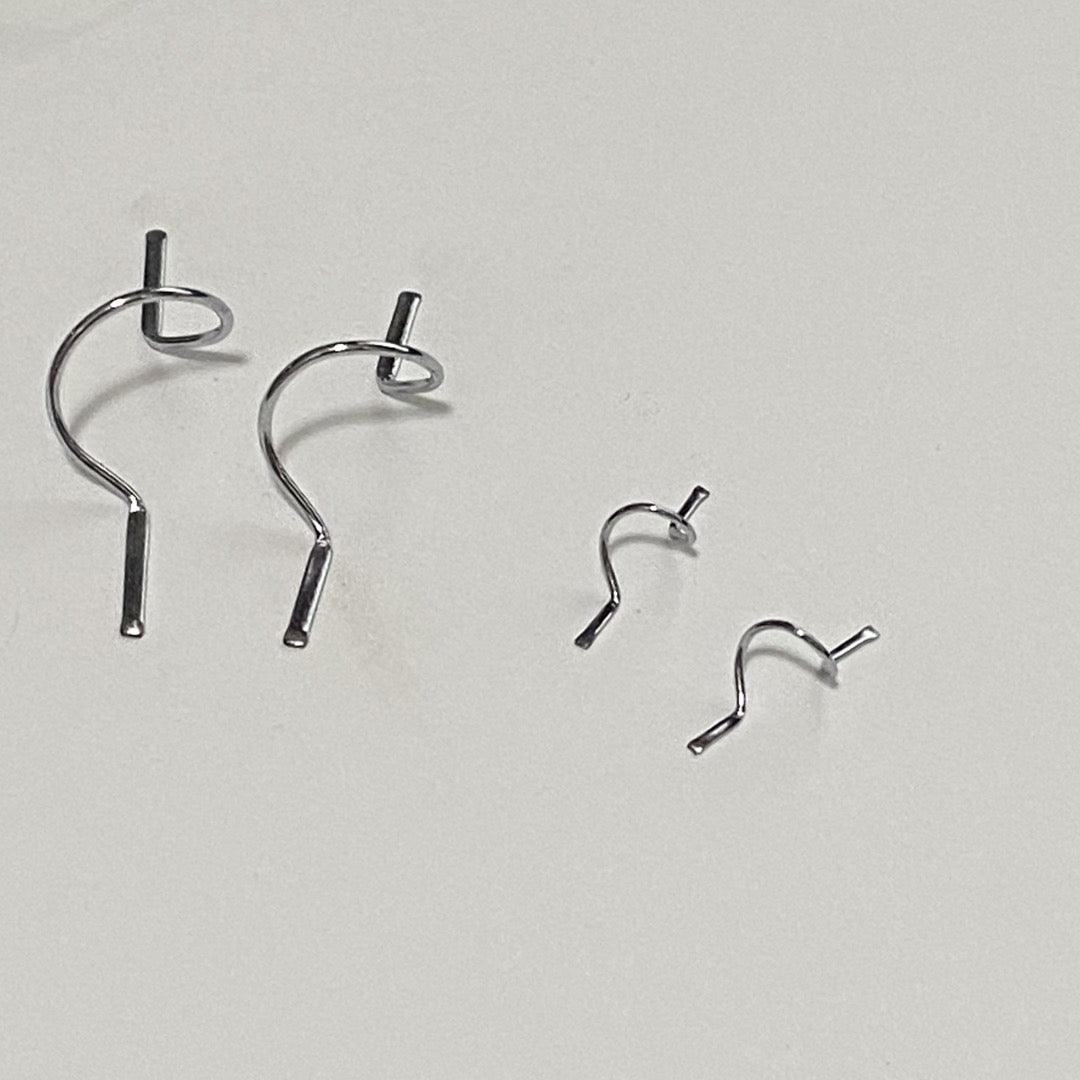

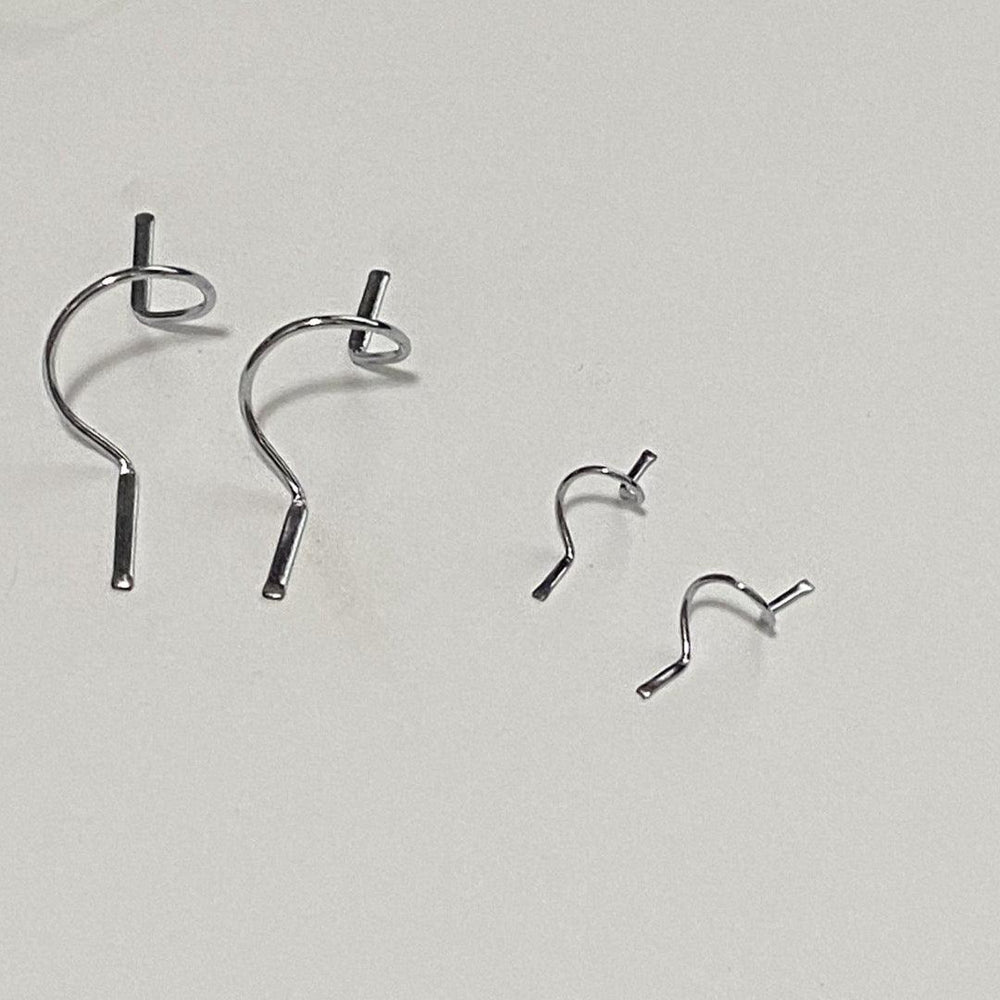

Snake Brand Original snake guides are formed from high quality stainless steel. The feet are consistent in length for even thread wrapping. They sit flat on the rod thus saving you time from twisting and bending. Eliminate grinding and filing so you do not damage the integrity of the stainless steel and the ECO coating.

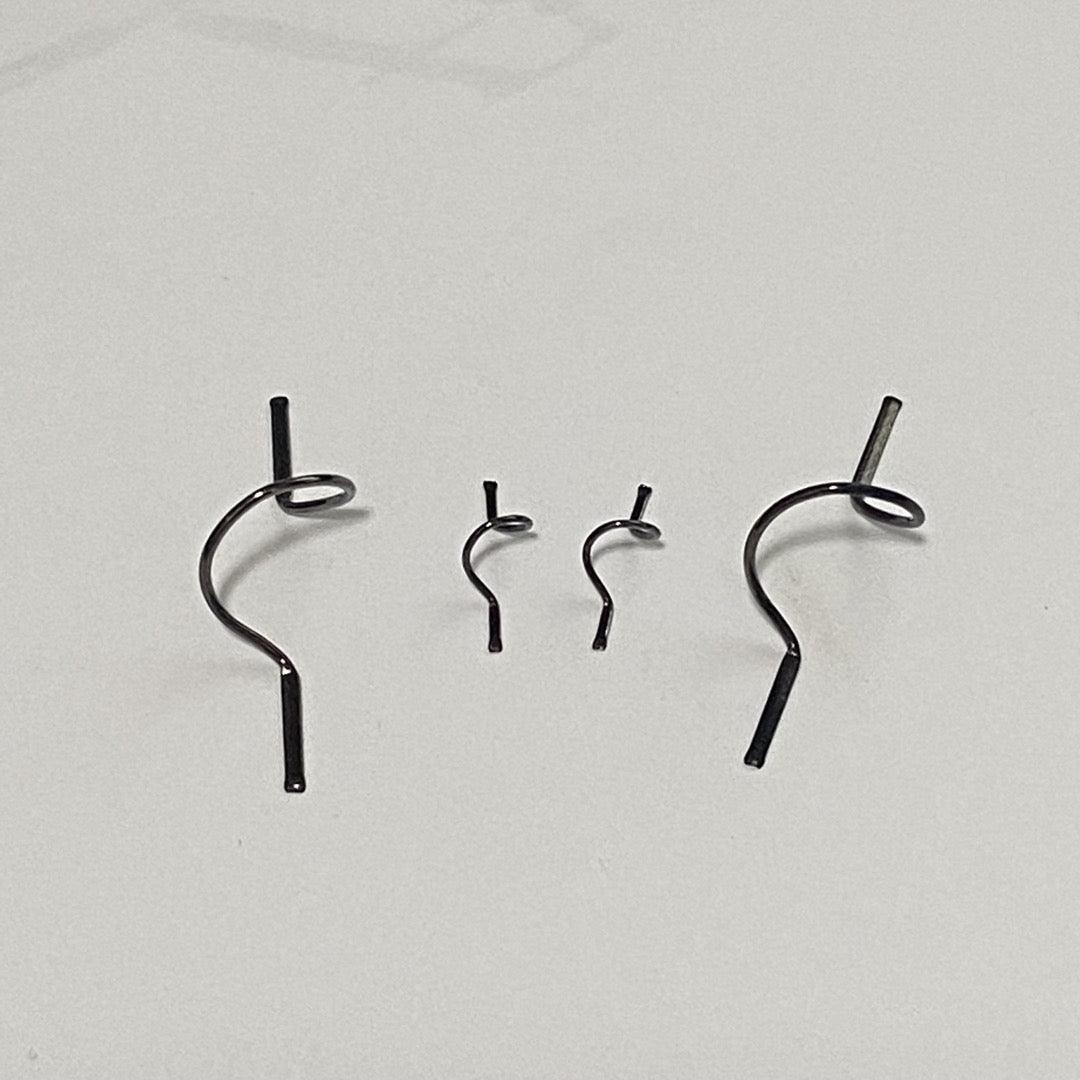

Note: Black Nickel finish is not recommended for saltwater use.
Size Chart for Original and Universal Guides
| wire diameters | ||||
|---|---|---|---|---|
| guide size | standard inches/mm |
light wire inches/mm |
spey inches/mm |
loop diameters inches/mm |
| 2/0 | .022" / 0.56 mm | |||
| 1/0 | .024" / 0.61 mm | .024" / 0.61 mm | .160" / 4.06 mm | |
| 1 | .026" / 0.66 mm | .024" / 0.61 mm | .175" / 4.44 mm | |
| 2 | .028" / 0.71 mm | .024" / 0.61 mm | .191" / 4.85 mm | |
| 3 | .030" / 0.76 mm | .024" / 0.61 mm | .212" / 5.38 mm | |
| 4 | .032" / 0.81 mm | .026" / 0.66 mm | .038" / 0.97 mm | .257" / 6.52 mm |
| 5 | .032" / 0.81 mm | .038" / 0.97 mm | .342" / 8.68 mm | |
| 6 | .032" / 0.81 mm | .038" / 0.97 mm | .365" / 9.27 mm | |
